MB-VB-00793
Difference of printing
Laser Engraving / Pad Printing
Pad Printing
1 color(s) artwork
On 1 position(s)
(2.00 cm X 5.00 cm)
Laser Engraving
1 color(s) artwork
On 1 position(s)
(2.00 cm X 5.00 cm)
color box Without Logo
Related Showcases
Product Details

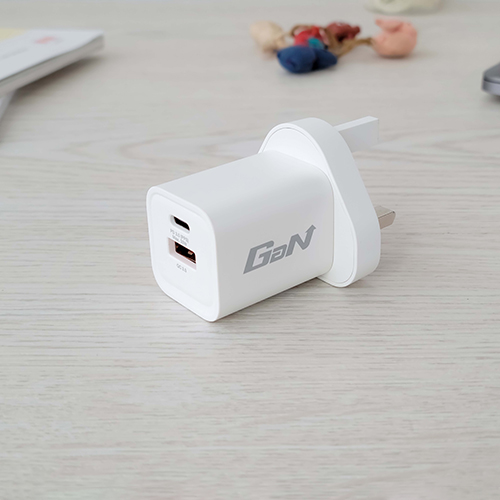

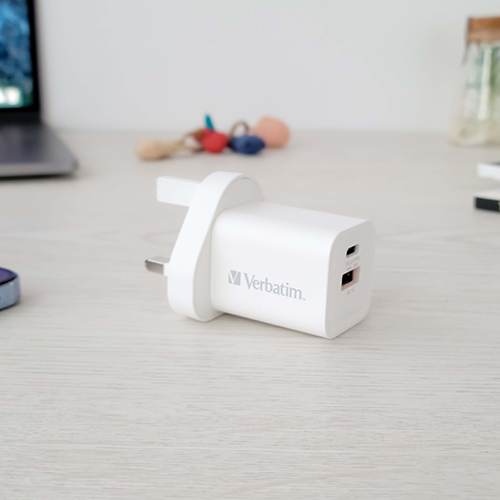

By utilizing the GaN II technology, the charger achieves high power output with a compact size that makes it ideal for use at home, in the office and overseas.
Equipped with 1 Type C PD 3.0 and 1 USB-A QC 3.0 ports. Type C PD 3.0 port supports up to 30W charging when being used alone. It also supports PPS up to 33W. USB-A QC 3.0 port supports up to 18W when being used alone. With a total maximum output of 33W.
Dual ports allow charging up to 2 devices simultaneously. When 2 ports are being used at the same time, the total maximum output is 15W (5Vdc/3A sharing).
It is designed with 4 protection systems: over current protection, over voltage protection, short circuit protection and over temperature protection. Therefore, the quality and stability are ensured.
The USB Charger has gained IEC62368 (H.K.), FCC (U.S.), CE (EU) and RoHS certificates. It is also supported with Global Product Liability Insurance.
Input: 100Vac – 240Vac, 50/60Hz, 0.8A (Max.)
Output:
Type C (PD 3.0) - 5Vdc/3A, 9Vdc/3A, 12Vdc/2.5A, 15Vdc/2A, 20Vdc/1.5A (Max. 30W).
(PPS Supported) - 3.3-11Vdc/3A, 3.3-16Vdc/2A (Max. 33W).
USB-A (QC 3.0) - 3.6-6.5Vdc/3A, 6.5-9Vdc/2A, 9-12Vdc/1.5A (Max. 18W).
Type C + USB-A - 5Vdc/3A sharing (Max. 15W).
Size：7.18 x 4.87 x 4.30 (CM)
Material：PC lame retardant

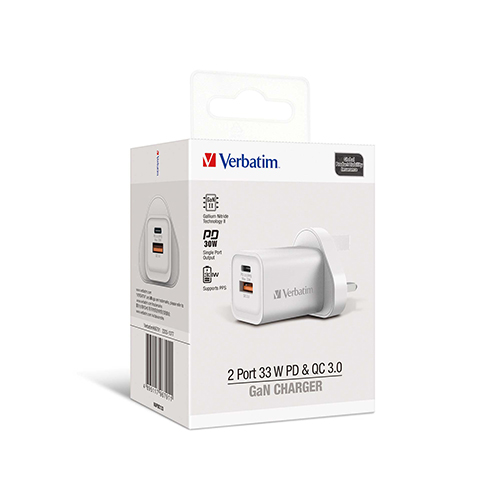

Basic Packaging: color box
Other Information：
Mass : 27.50 X 48.00 X 31.50 (CM)
Carton Box : 40 PCS / Carton Box
Inner Box : 1 QTY / Inner Box
Gross Weight : 5.30 KGS/Carton Box
